Casement Operator 9" Arm

In stock

Part #

RO267-8
As low as $36.95

Description

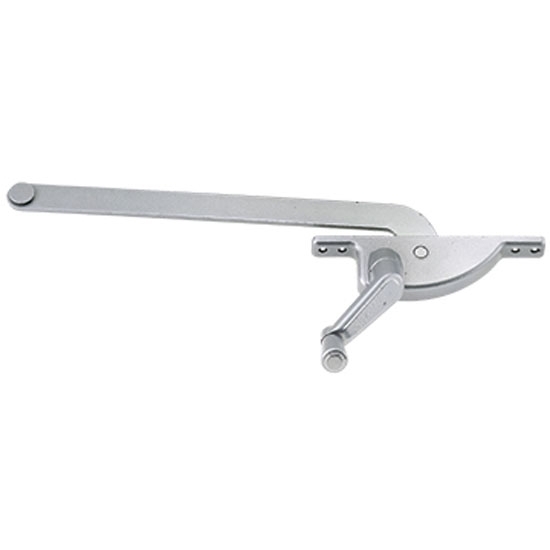

Casement Window Operator 9" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 9" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Ro267 Right Hand
Ro268 Left Hand

Handing Diagram

Left Hand Window
Right Hand Window

The Casement Operator 9" Arm has a die cast housing with steel arm. This mechanism was popular 30 years ago, and was used on steel and aluminum framed windows.  The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 9" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

More Information
Part # RO267-8
Detailed Description

The Casement Operator 9" Arm has a die cast housing with steel arm. This mechanism was popular 30 years ago, and was used on steel and aluminum framed windows.  The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 9" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Description

Casement Window Operator 9" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 9" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Ro267 Right Hand
Ro268 Left Hand

Handing Diagram

Left Hand Window
Right Hand Window

Availability In Stock
Manufacturer Robert Brooke
